이미지보드

  • 이미지보드
  • CameraLink

CameraLink

총 13건
제품 이미지 제조사 제품명 시리즈 인터페이스 슬롯 구성 최대속도 커넥터 최대 카메라 수

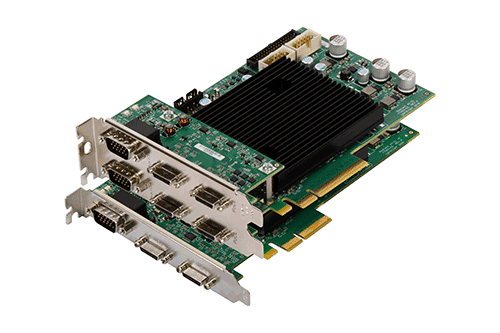

Zebra RAD EV 2M CLSB Radient eV-CL Camera Link / Base PCIe 2.1 x 1 255 Mbyte/s SDR26 2
Zebra RAD EV 5M CLDB Radient eV-CL Camera Link / Medium, Base PCIe 2.1 x 4 510 Mbyte/s SDR26 1
Zebra RAD EV 5M CLSF Radient eV-CL Camera Link / Base, Full PCIe 2.1 x 4 850 Mbyte/s SDR26 4
Zebra RAD EV 1G CLDB Radient eV-CL Camera Link / Medium, Base PCIe 2.1 x 8 510 Mbyte/s SDR26 2
Zebra RAD EV 1G CLSF Radient eV-CL Camera Link / Full, Medium, Base PCIe 2.1 x 8 850 Mbyte/s SDR26 2
Zebra RAD EV 1G CLQB Radient eV-CL Camera Link / Medium, Base PCIe 2.1 x 8 510 Mbyte/s SDR26 4
Zebra RAD EV 1G CLDF Radient eV-CL Camera Link / Full, Medium, Base PCIe 2.1 x 8 850 Mbyte/s SDR26 2

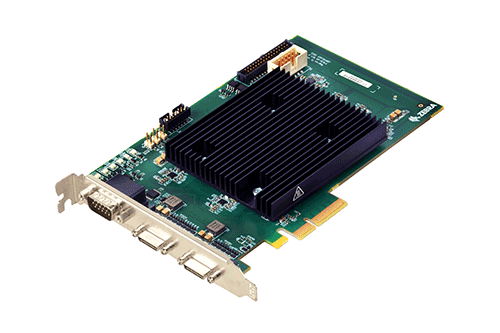

Zebra RAP 5M CL Rapixo CL Camera Link / Full, Medium, Base PCIe 2.1 x 4 850 Mbyte/s SDR26 2

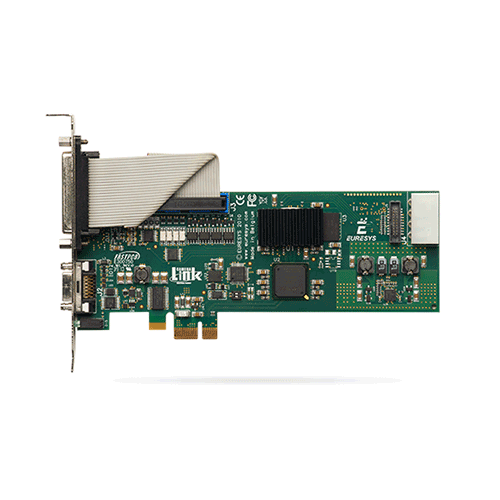

Euresys Grablink Base GrabLink Camera Link / Base PCIe 2.1 x 1 255 Mbyte/s SDR26 1

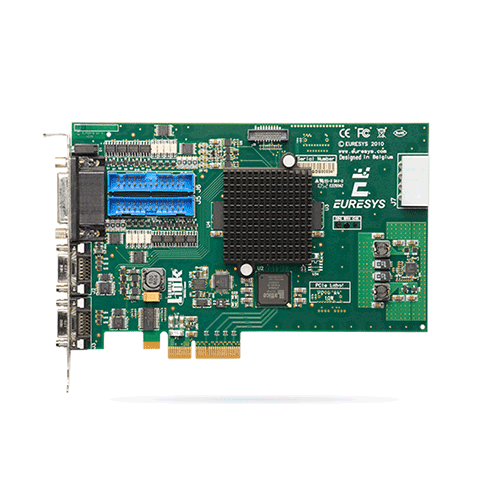

Euresys Grablink DualBase GrabLink Camera Link / Medium, Base PCIe 2.1 x 4 510 Mbyte/s SDR26 2
